Compared with the metal and non-metal co2 laser cutting machine, this type co2 laser cutter has the larger work surface.

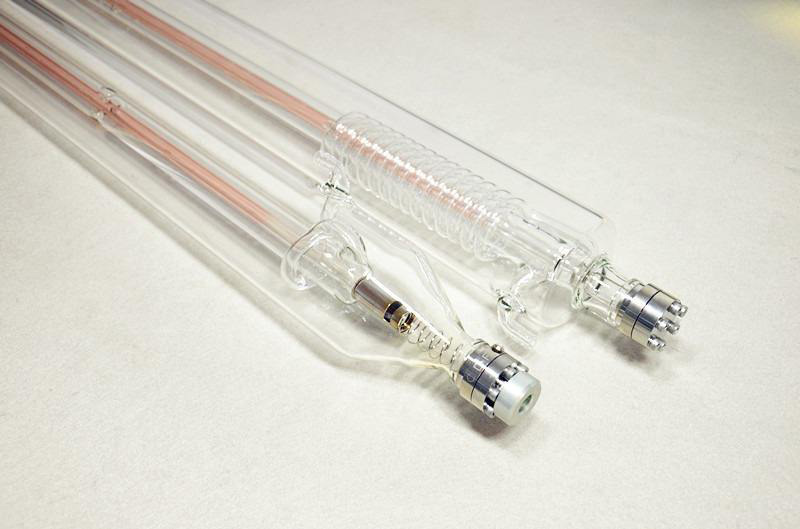

And with the highly efficient sealed CO2 tube with 10,000 hours MTBF, making you don't worry about you laser equipment.
Description
Higher laser output power density, concentrated light beam, uniformly light spot, high working efficiency, high cutting speed. The laser tube adopts the special manufacturing technique, the laser beam is sharpen after focusing, the mark line is narrow, the scale is deep, the resolution is high, the picture character is clear.

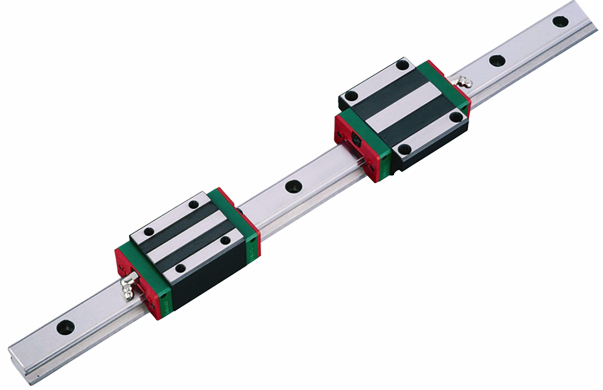

Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.
| Model | MDC0690N | MDC1060N | MDC1390N | MDC1410N | MDC1610N | |||
| Max Working Area | 900*600mm | 1000*600mm | 1300*900mm | 1400*1000mm | 1600*1000mm | |||
| Transmission | Belt | |||||||
| Laser Power | 80w,100w,130w,150w,180w(RECI or Yongli brand) | |||||||
| Applied materials | Cutting&engraving:Wood, MDF, Plywood,Plastic,Arcylic,Paper,Leather... Only engraving: Stone,Glass,Marble,Coated metal... |
|||||||
| Working table type | Blade or Honeycomb | |||||||
| Optional | Up-down table, Rotary device,Auto focus | |||||||

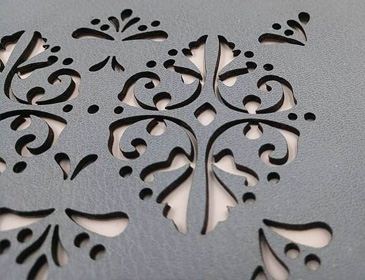

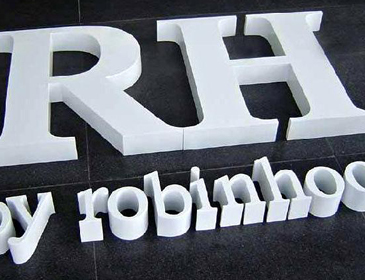

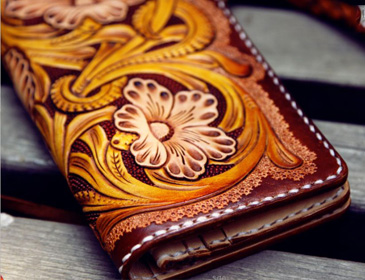

Wood, organic glass, plastic, garments, paper, leather, rubber, and other nonmetal materials.
